Optical Project, Moulding and Tooling Realization, Production:
100% In House, Made in Italy
100% In House, Made in Italy
khatod
lenses have made the mark in the LED Industry by delivering solutions
that have always offered the opportunity to be a step forward in your
lighting applications. This is the result of a continuous commitment to
research and development, but it also comes from a great capacity to
imagine and create.
The exclusive STRIP LENSES
from Khatod offer the opportunity to use your imagination in lighting
applications, however trusting on a technological product of the highest
quality.
STRIP LENSES are designed and optimized to suit most of the SMD LEDs used to build long strips, as well as High Brightness LEDs of latest generation from the most popular LEDs references. Also, STRIP LENSES deliver excellent lighting results either with white or color LEDs.
Unique on the market, Khatod STRIP LENSES are TIR Lenses manufactured through High Precision Injection Molding Process. They ARE NOT extrusion process manufactured. This makes the great difference between KHATOD STRIP LENSES and the ones from our competitors now available on the market.
STRIP LENSES are designed and optimized to suit most of the SMD LEDs used to build long strips, as well as High Brightness LEDs of latest generation from the most popular LEDs references. Also, STRIP LENSES deliver excellent lighting results either with white or color LEDs.
Unique on the market, Khatod STRIP LENSES are TIR Lenses manufactured through High Precision Injection Molding Process. They ARE NOT extrusion process manufactured. This makes the great difference between KHATOD STRIP LENSES and the ones from our competitors now available on the market.
They are realized in 2 Beam Angles: Symmetric & Asymmetric.
The Strips from Khatod are REAL TIR LENSES, optically engineered to perform precise symmetric and asymmetric beam angles, made of Optical Grade PMMA, and reaching a Lighting Efficiency of 89%.
The lens magnifies and directs the LED light by shaping a perfect
symmetric or asymmetric beam angle, depending on the Strip Lens you are
using. This gives your light more focus to a direct spot in the shape
you have chosen to reproduce.
Khatod STRIP LENSES are available in the following dimensions: 200mm (l) x 12.5mm (w) x 8.5mm (h).
They can be butted up together to give a continuous effect, and realize desired lengths by multiples of 200mm strip lenses.
They can be butted up together to give a continuous effect, and realize desired lengths by multiples of 200mm strip lenses.
Also, Khatod delivers the great opportunity to test immediately our lenses!
On request, you will be supplied with proper aluminum extrusions specifically engineered for housing the SYMMETRIC and ASYMMETRIC STRIP LENSES from KHATOD.
The extrusions, supplied only on request, are 600mm long and can hold up to 3 parts of butted up together Strip Lenses that will perform like one single strip lens delivering a perfect continuous smooth lighting.
The extrusions can be cut to size so enabling to realize any desired lengths. The Strip Lenses and the extrusions are supplied separately and you are totally free to require just the strip lenses without the extrusions. Khatod Strip Lenses are provided with linear pins enabling a robust mounting into the proper aluminum extrusion.
On request, you will be supplied with proper aluminum extrusions specifically engineered for housing the SYMMETRIC and ASYMMETRIC STRIP LENSES from KHATOD.
The extrusions, supplied only on request, are 600mm long and can hold up to 3 parts of butted up together Strip Lenses that will perform like one single strip lens delivering a perfect continuous smooth lighting.
The extrusions can be cut to size so enabling to realize any desired lengths. The Strip Lenses and the extrusions are supplied separately and you are totally free to require just the strip lenses without the extrusions. Khatod Strip Lenses are provided with linear pins enabling a robust mounting into the proper aluminum extrusion.
SYMMETRIC and ASYMMETRIC STRIP LENSES are perfect for use in General Lighting, particularly in Architectural or Decorative Light Applications.
Suitable to emphasize a room in a museum, as well as a hall or an
entrance; perfect for under cabinet, under stairs, closets, exhibits,
furniture; excellent for wall washing, coves and corridors, shop
windows, aircraft interior, etc.
The solution for any project requiring a particular beam angle and a special light effect from a lighting strip, is now at your disposal.
The solution for any project requiring a particular beam angle and a special light effect from a lighting strip, is now at your disposal.
General Characteristics
-
High Precision Injection Molded Strip TIR Lens
-
Deliver a soft and smooth light beam
-
Lens material: Optical Grade PMMA
-
Good Performance and Compatibility for a wide range of LEDs
-
Usable either with White or Color LEDs
-
On request, can be supplied with proper aluminum extrusions
-
Non-water-resistant. An extra protection is recommended for outdoor applications
Features
-

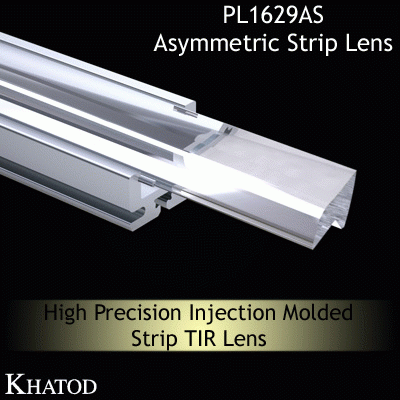

Available in Symmetric & Asymmetric beams: Symmetric (PN = PL1629NA) and Asymmetric (PN = PL1629AS)
-
Efficiency > 89%
-
Linear Pins provide robust mounting into aluminum extruded profile
Typical Applications
-
Architectural & Decorative
-
Retail & Museum
-
Aircraft Interior
-
Under Cabinet
-
Under Stairs
-
Closets
-
Furniture
-
Exhibits
-
Wall Washing
-
Cove & Corridor
-
Shop Windows
If you are looking for the brightest strip of light
Khatod Strip Lenses are definitely the product for you
Khatod Strip Lenses are definitely the product for you
